型號Model

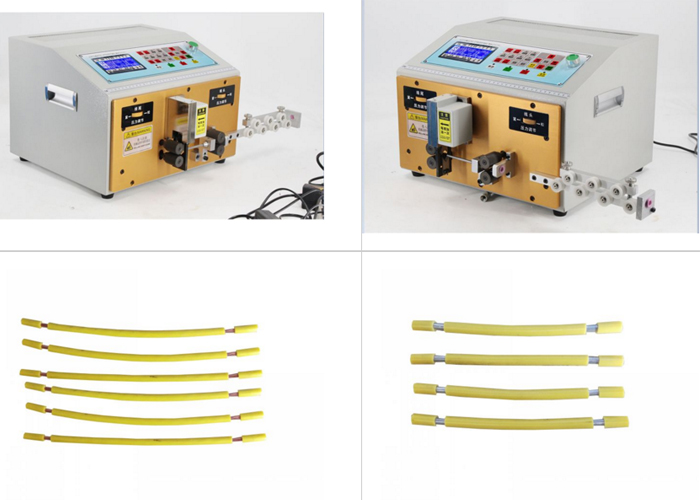

DW-808

外形尺寸Dimensions

L420*W450*H310

重量Weight

28KG

顯示方式Display

中文，液晶 Chinese interface LCD display or English interface

電源Power

220V／260W

切割長度Cutting Length

1mm-99999.99mm

剝皮長度Stripping Length

0.5mm-30mm

中間剝切Intermediate peeling and cutting

帶有中間切皮15處Intermediate cut at fifteen

剝線范圍Cutting Range

0．1-4mm2多股軟線

導線類型Wire Material

PVC、鐵氟龍線、玻璃線 PVC and ferromolybdenum fluorine Long Xian, glass wire

切割公差Cutting tolerance

Within 0.002 * Lmm ※ L=cutting length

導管直徑Max. wire diam

1-4mm

驅動方式Driving way

四輪驅動，,獨立驅動盒驅動Four-wheel drive, independent drive box driver

生產率（次／分）Productivity(pcs／m)

90 PCS
